MFLEX™ Access Control

MFLEX™ Access Control is our computer managed networkable door access control system from 1 to 128 doors and up to 4000 smart card or key-tag holders. This low cost but powerful solution for electronically secured doors and entrance ways, can be managed and monitored through any devices web browser, over the world wide web and via your mobile phone or tablet.

ADMINISTRATION SOFTWARE
The MFLEX™ Access Control Software is installed on one Windows PC only and is a simple yet powerful solution offering a host of features such as simple cardholder management, flexible reporting, integrated photo ID card designer, multiple workstations and web browser administration and event monitoring anywhere.

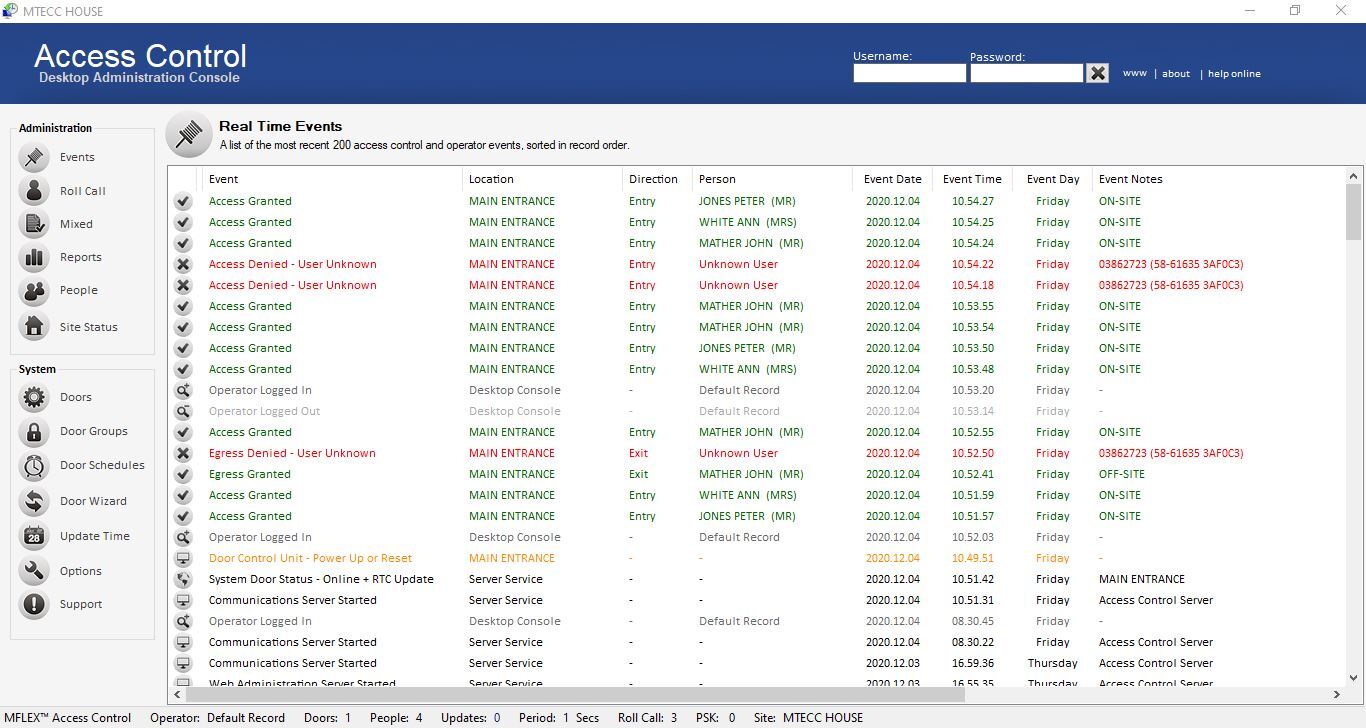

Windows Desktop Administration View

WebAdmin Browser Administration View

SIMPLE HARDWARE
Utilising our ultra-compact low cost single door intelligent control units, installation is simple and modular from 1 to 128 doors. Local or remote doors and entrances can be interconnected by IP-485 or USB-485 socket means. Easy to install and operate sever software, is installed on a single Windows computer to control and manage the system for online or offline operation. All included features are easy to learn and use, with minimum knowledge and training required. Using our range of smart proximity door readers and associated smart cards & key-tags, you can combat the growing security risk of card duplication and cloning and be assured you are installing a secure solution for all your protected areas.

KEY FEATURES
♦ Modular low cost electronic door access control from 1 to 128 doors
♦ Web browser based administration with unlimited secure web client connections
♦ Capacity for over 4000 card or key-tag holders
♦ Low cost secure smart proximity cards & key-tags for secure access
♦ Our smart door readers combat the growing security risk of card duplication and cloning
♦ Our duoTECH media will permit common access token use across many popular intruder alarm systems such as Texecom, Galaxy or Pyronix
♦ Proximity card only or high security card + PIN operation
♦ Comprehensive card management database
♦ Integrated Photo ID card design and print
♦ Extensive access control, event history, location and roll call reporting
♦ Time clock reports with web and door activity clocking's
♦ Doors and entrances operate autonomously on or offline
♦ Email of important alarms and event notifications

DISTRIBUTED INTELLIGENCE

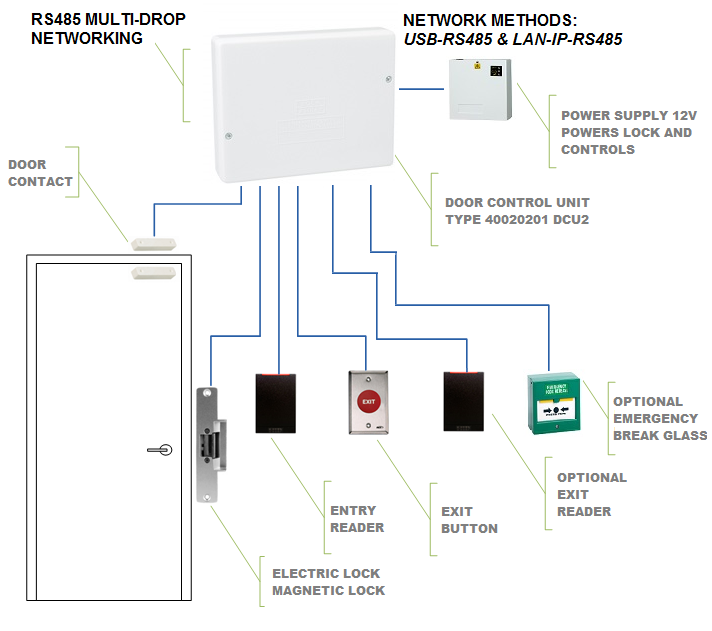

MFLEX™ Access Control is a fully distributed intelligence system, meaning that all changes and system configurations made are stored locally at the door or entrance control unit giving full secure door access control even when doors are offline. Each single door or entrance can have 1 or 2 card readers for entry and optional exit purposes. The secured doors are connected by a low cost dedicated cable network, the length of which can be up to 1200M. Each door or entrance is controlled by a local Door Control Unit (DCU) which allows the connection of all the door facilities such as readers, local power supply, exit request button, magnetic door contact, fire release and electric locking. Door Control Units can be networked together simply by RS485 5-wire cabling through MTECC LAN / WAN IP-485 or USB-485 interface adapters, for some or all of the system doors. With the correct LAN / WAN IP infrastructure, parts of your overall system can be segmented, in other buildings or geographic locations.

EASE OF ADMINISTRATION
Your MFLEX™ Access Control installation can be easily, securely and flexibly managed from a single local point or multiple points on your network or even over the internet. The MFLEX™ Access Control Software is only ever installed on one local Windows PC for maximum security and simplicity. Multiple web browsers can connect locally or remotely by virtue of the built-in 'private cloud' web server. Remote workstations can then simply connect using there favoured internet browser, mobile smart phone or tablet device with no additional software or application installation needed. All administrative functions requested from any device are protected by strong authentication means.

EXTENSIVE ACCESS CONTROL & TIME CLOCKING REPORTS
MFLEX™ Access Control has powerful features for producing in-depth reporting to screen, print or export. Reports can be generated from the powerful built-in SQL database, based on access control activity and time clocking historical events. Available report types are:

♦ Door access control event audit reporting
♦ Time clocking reporting
♦ Door alarms and physical security risk reporting
♦ Presence (who's on-site) reporting
♦ Individual location reporting
♦ Operator activity reporting
♦ Guard patrol audit reporting

All reports can be produced simply from the secure integrated SQL database. Report data can be viewed, printed and further exported for processing in external applications such as Word or Excel.

INTRUDER ALARM ARMING
Being able to use the same access control card or tag to open you secure doors and arm / disarm your intruder alarm systems is an option. Our duoTECH dual technology media will permit common card or tag use across popular intruder alarm systems, such as Texecom, Galaxy or Pyronix in addition to your access controlled doors.

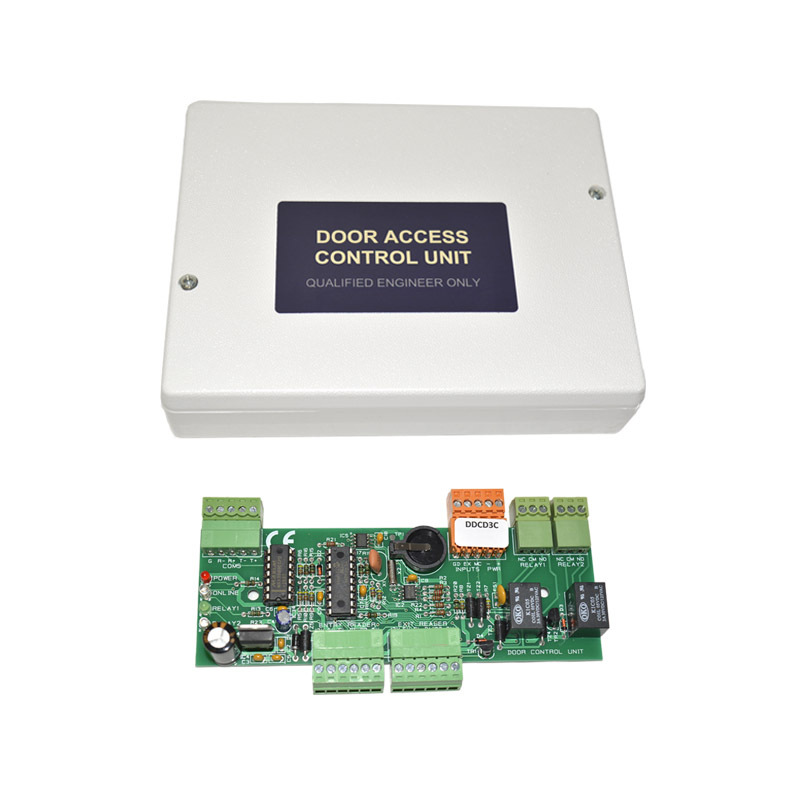

MFLEX™ DOOR CONTROL UNIT
The local door control unit (DCU) acts as a termination point for all the door facilities and allows the dedicated network to be passed on to the next door or entrance. The management PC is connected to this door network from a single USB port or over IP socket means. If the management PC belongs to a local network, other browsers can connect and manage the system. If connected to the Internet, you can also administrate and monitor your system from a computer or smart device anywhere in the world.

The compact door control unit housing is only 122mm x 156mm x 32mm, so fitting this locally to the door or inside a metal power supply case is simplicity itself. Do not let the small size fool you however, as each door control unit has the capability of managing two door readers, exit request button, door monitor contact, electric locking device, local door alarm and up to 4000 card or key- tag holders at each secured door or entrance. The door control unit also maintains its own clock and calendar, and has the capacity to store 1100 past events locally if the door is taken offline from the host software for any reason. Each door or entrance can actively operate in one of four security modes, no access, proximity card access, proximity card + PIN access and door unlocked free access. The security mode of any door can change actively minute-by-minute, day-by-day by use of simple programmable door schedules that operate online or offline once set.

DCU KEY FEATURES
♦ 4100 users
♦ 1100 offline event storage
♦ 2 industry standard open format Wiegand door reader inputs
♦ Card only or / and Card + PIN operation
♦ USB, RS485 & IP connectivity
♦ Multiple door time schedules and real time clock / calendar
♦ Exit request button and door monitor contact inputs

FLEXIBLE DOOR NETWORKING

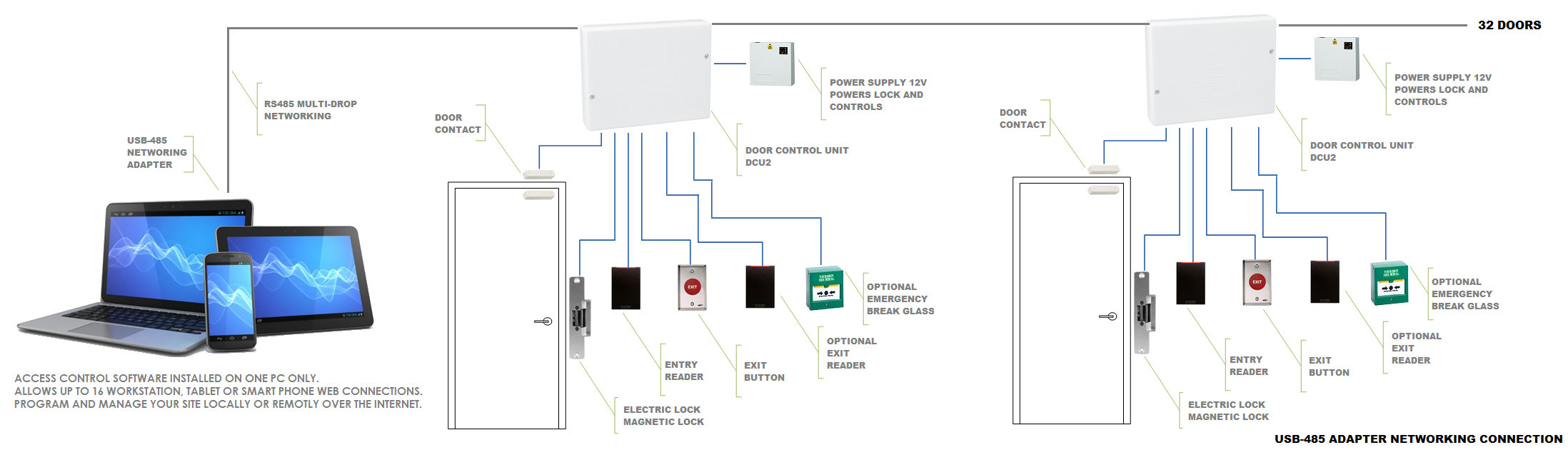

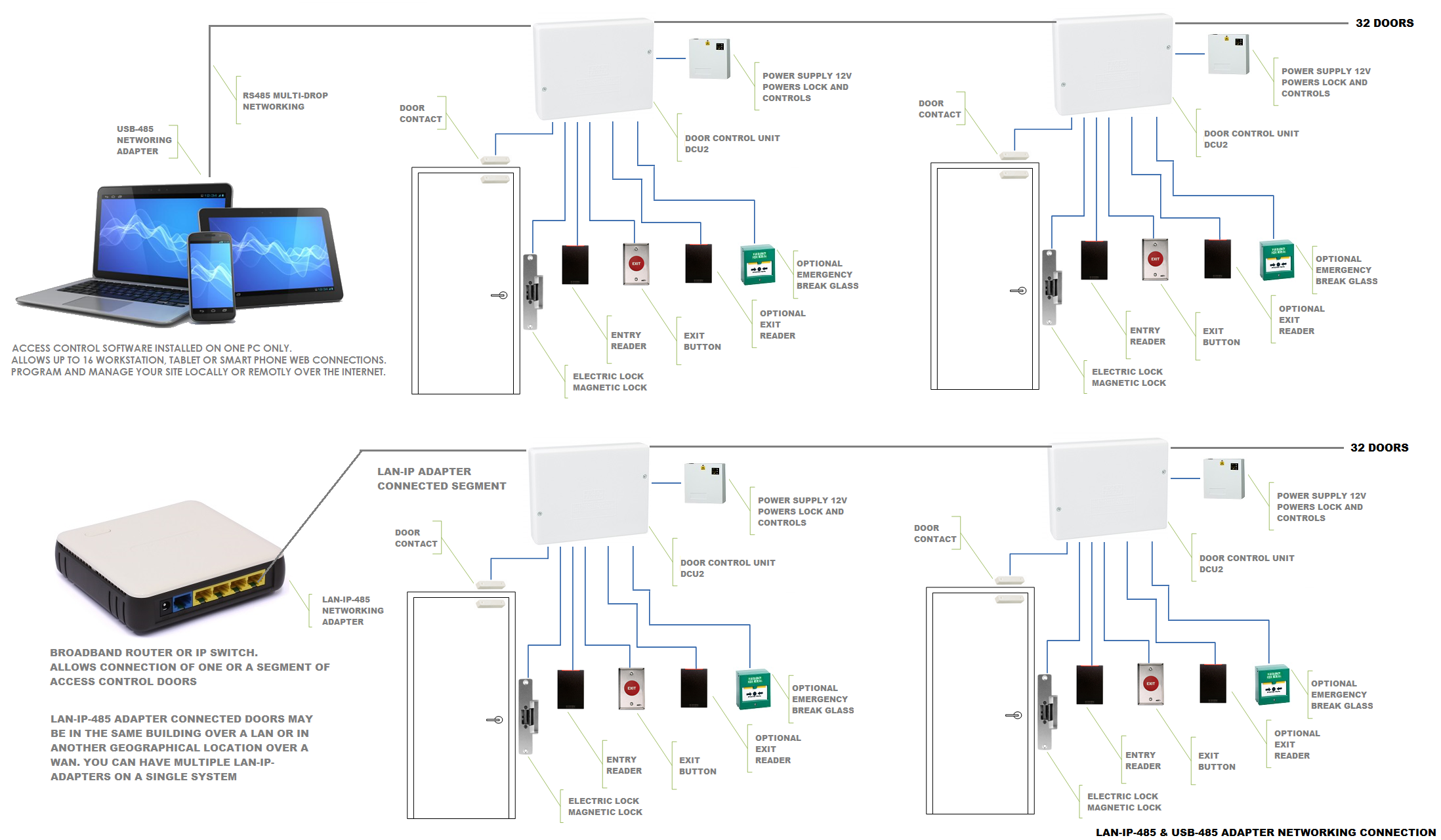

You can connect individual or segments of door control units over LAN / WAN IP-485 or USB-485 connections by the use of our MTECC networking adapters. Each door control unit is equipped with a multi-drop RS485 interface allowing the inter-connection of up to 128 units from a single USB port. Additionally, you can use our IP-485 adapter to inter-connect a door or segment of doors, even in different locations.

ACCESS CONTROL PROXIMITY READERS
Our MPROX™ smart proximity door readers connect directly to the local door control unit and have industry standard Weigand interfaces. The MPROX™ reader range have bright bi-colour LEDs and a built-in sounder for process feedback, plus fully potted electronics for internal or external use. For added flexibility, the standard MPROX™ smart proximity readers feature a recess in the front faceplate for a custom identity label of your choice. Using our standard smart proximity readers and associated smart credentials, you can combat the growing security risk of card duplication and cloning.
