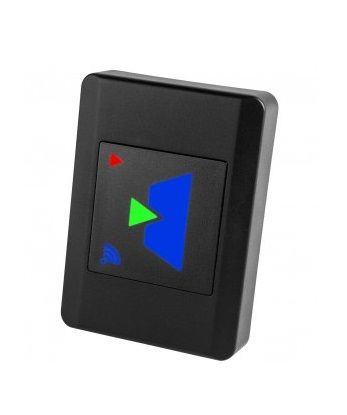

The UPR+ Universal Proximity Reader is designed to work with all access control systems provided they have a Wiegand input for communication.

The UPR+ (contactless reader) reads cards and tokens at 125KHz and 13.56MHz. It transmits the data to the controller while providing a visual and/or audible signal using the LED / Buzzer if the card is recognised, valid or invalid.

The Universal Proximity Reader can be surface wall mounted or flush in a door entry panel (panel mount mode) with a standard 40x40mm cut-out. This is a UNIQUE feature of the UPR+. No other reader available in the UK can be used for panel mounting or wall mounting. The UPR+ suitable for external or internal use.

PANEL MOUNTING

Panel mounting means the reader can be installed into a door entry panel (or other suitable panel or housing) with a 40 x 40mm cut-out.

Most vandal resistant door entry panels are available in a style to accept a 40 x 40mm proximity reader. This style of reader was introduced by PAC in the 1980s.

FEATURES

• Reads EM, MFLEX, MIFARE, IC and MTECC Smart Cards & Tags
• Unified replacement for legacy MPROX, MPROX-ECO, MPROX-125 & MPROX-MF
• Wall mounting or flush panel mounting

SPECIFICATION

• Generic Wiegand 26 Bit reader output
• EM Proximity (125KHz)
• MFLEX Proximity (125KHz)
• MIFARE Proximity (13.56MHz)
• MTECC Smart Proximity (13.56MHz)
• MTECC Smart Dual Technology (13.56MHz)
• 8-12VDC 100mAmp
